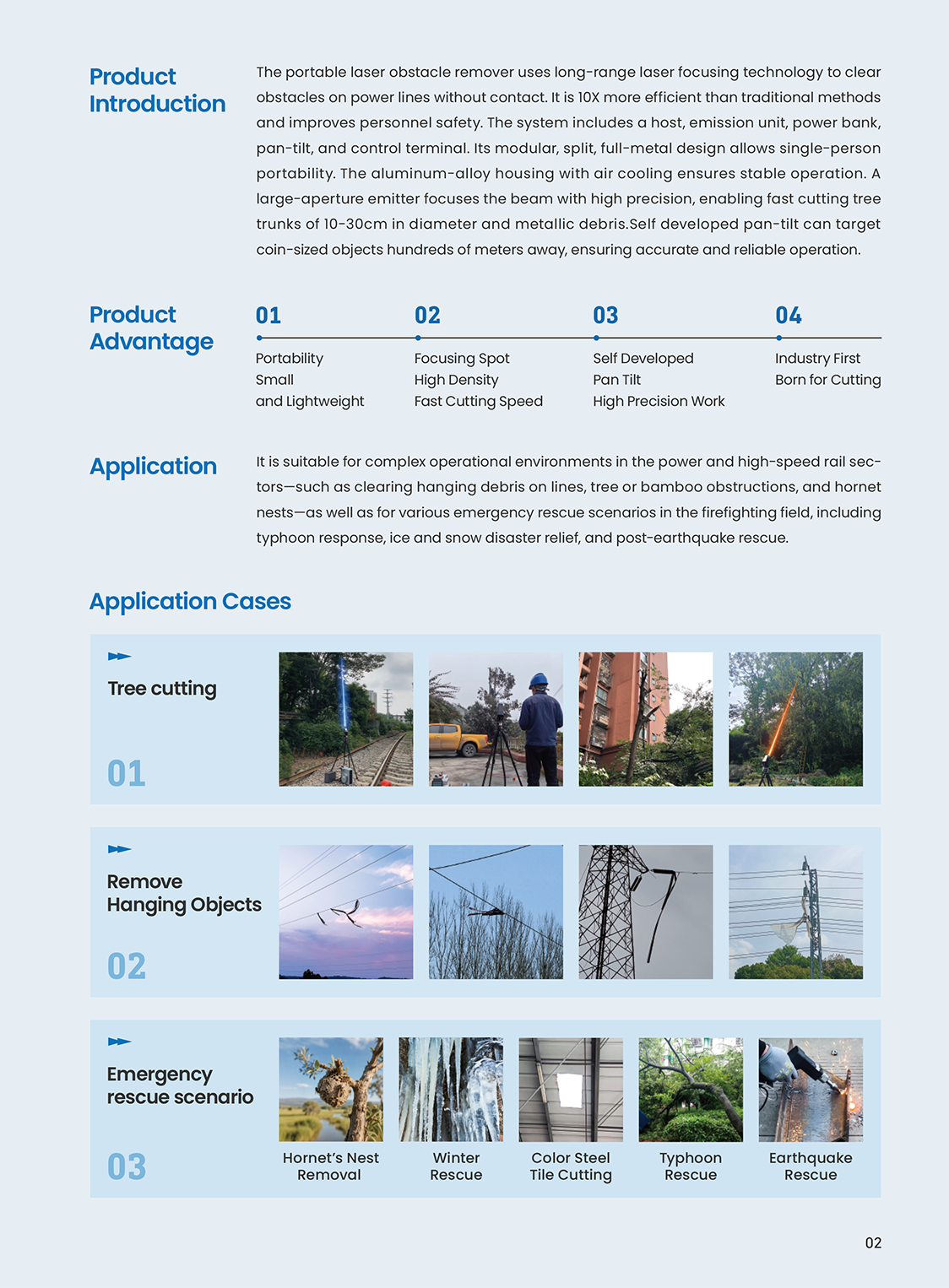

Product Introduction
The portable laser obstacle remover uses long-range laser focusing technology to clear obstacles on power lines without contact. It is 10X more efficient than traditional methods and improves personnel safety.

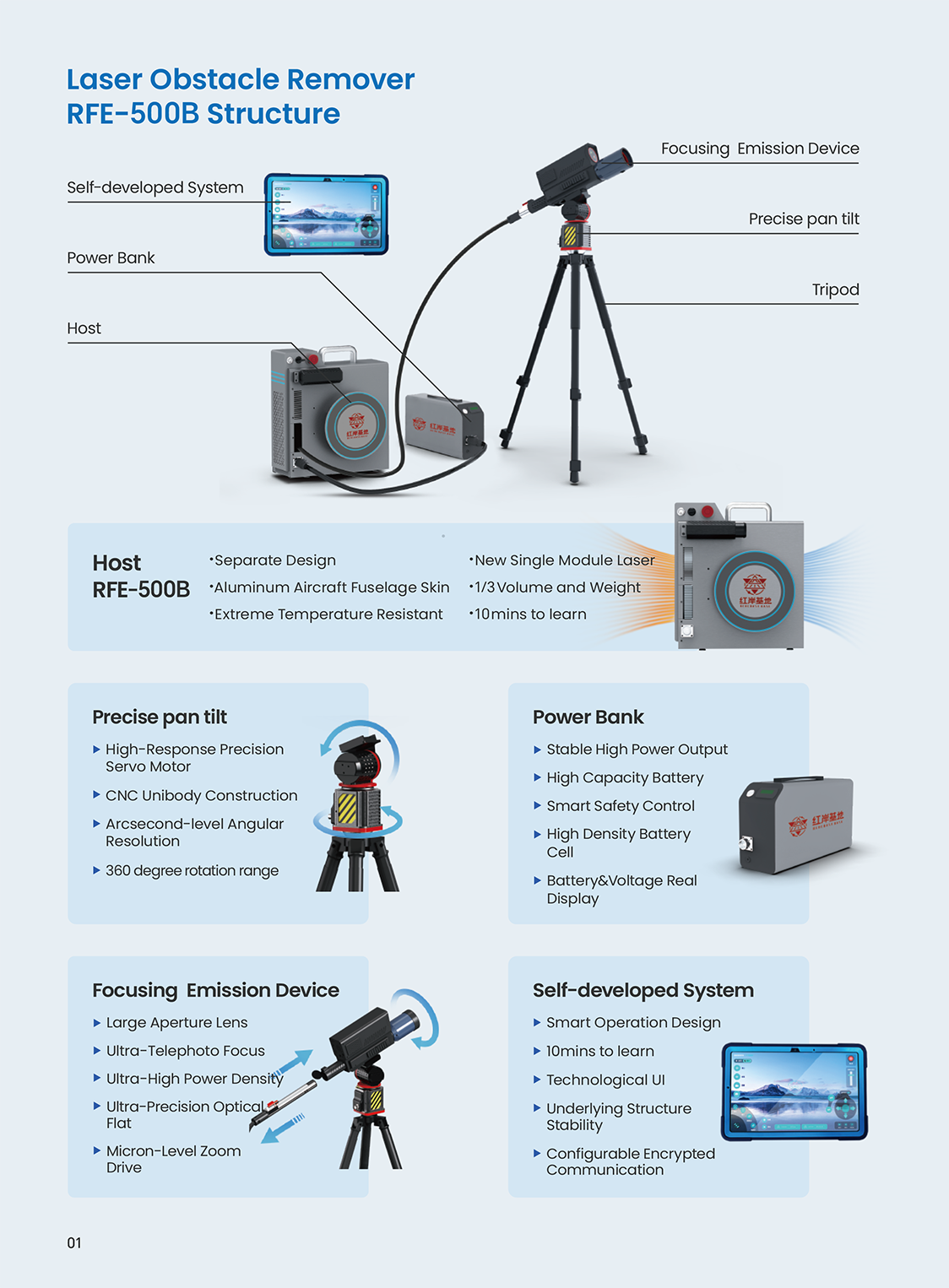

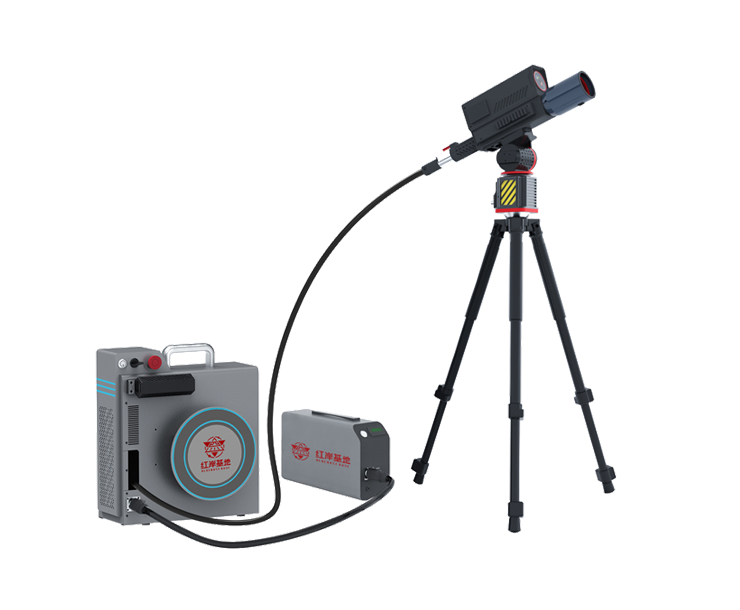

The system includes a host, emission unit, power bank, pan-tilt, and control terminal. Its modular, split, full-metal design allows single-person portability. The aluminum-alloy housing with air cooling ensures stable operation.
A large-aperture emitter focuses the beam with high precision, enabling fast cutting tree trunks of 10-30cm in diameter and metallic debris.Self developed pan-tilt can target coin-sized objects hundreds of meters away, ensuring accurate and reliable operation.
Nickname: laser tree cutter, laser tree cutting machine(tree trimming around power lines).
Product Application
The laser obstacle remover is used for the remote clearance of kites, dust-proof nets, hanging objects, drones, hornet nests, bird nests, and other obstructions on high-voltage power lines. It can also cut down trees encroaching on high-voltage lines, ensuring electrical safety and personal safety.
Additionally, it can be deployed for typhoon emergency response, snow disaster rescue operations, and post-earthquake rescue missions.
Product Parameters
| Name | Unit | Number/Description |
|---|
| Peak Wavelength | nm | 1080 |
| Rated Output Power | W | 1000 |
| Size | mm | ~735×255×289 |
| Weight | kg | ~24 |
| Pan-Tilt Adjustment Knob | — | 9 |
| Pan-Tilt Horizontal Rotation Degree | ° | 360 |
| Laser Type | — | Optical Fiber |
| Cooling Type | — | Air |
| Zoom and Magnification | — | Electric |
| Recording | — | Yes |
| Warning | — | Light and Audio Alarm |
| Safety Protection | — | Tilt and Trigger Prevention |
| Remote Control | — | GPS, Remote Authorization and Lock (Option) |
| Auto Cutting | — | Auto Cutting |
| Emission Head Connection Mode | — | Emission Head Connection Mode |
Production Company
Red Coast Base Intelligent Technology Co., Ltd.,In Sichuan, China
Contact Us
mail: roychen@redcoastlaser.com
phone: 86 18100808486
Click here to leave your contact information
8th Generation Laser Obstacle Remover - RFE-1000B
